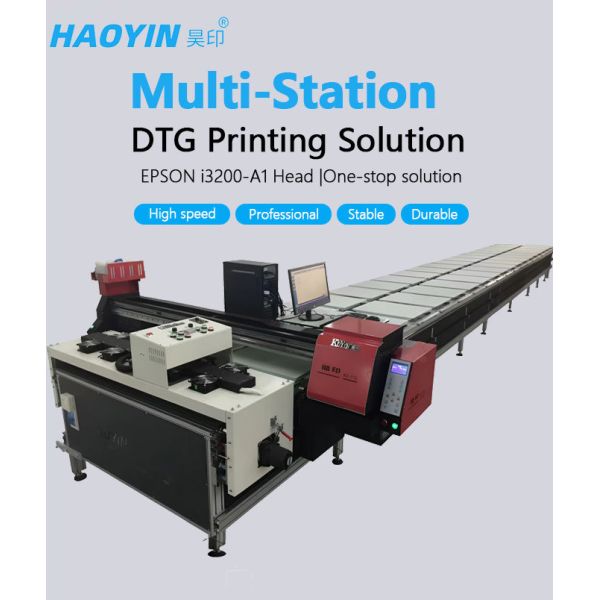

Modular Multi Station DTG Printer System Allowing Flexible On Demand Capacity Upgrades
Multi-Station DTG Printer | Expandable Modular Design, Wide Gamut with Nine Colors, High-Volume Production
Designed for the apparel decoration sector, this multi-station white ink DTG printer utilizes advanced direct-to-garment technology to deposit ink uniformly and accurately onto textile surfaces. The multi-station layout effectively integrates various production steps, optimizes batch processing, and substantially increases overall throughput.
Nine-Color Configuration for Exceptional Color Reproduction
Featuring four Epson I3200 industrial printheads, it supports a nine-color system (CMYK + ORGB + White) alongside a four-head full-color option, resulting in an expanded color spectrum and smoother gradient transitions that satisfy demanding print quality standards.
Modular Frame Construction for Scalable Production Capacity
Built with an aluminum alloy structure, it supports modular assembly—each 3-meter unit accommodates 10 stations, with a maximum length of 30 meters. This adaptable design enables production line customization based on business needs, allowing capacity to scale as operations grow.
Stable High-Speed Performance, Balancing Speed and Accuracy
With modular architecture and multi-station coordination, it reaches speeds of up to 100 A4-sized prints per hour, delivering high precision and reliable stability throughout mass production runs.
DTG Printer Specifications
| Printer Model |
KY1412 |
| Print head |
EPSON 3200-A1 |
| Print width |
≤40cm |
| Print color |
CMYKORGB+White |
| RIP software |
MainTop/RF/RIIN |
| Printing accuracy |
720*1800 dpi |
| Recommended speed |
70Pcs/A3 |
| Electrical parameters |
220V/600ma/50/60HZ |
| Printing media |
Pure cotton and fabrics containing cotton |
| Operating system |
Windows 10 and above |
| Work Environment |
Temperature 10 - 35℃, Humidity 30-80% |
| Factory configuration |
standard Tabletop:40cm*50cm maximum Tabletop:50cm*60cm |
| Scope of application |
Widely used industries such as clothing,luggage,canvas shoes,hats,underwear,and both bowels |

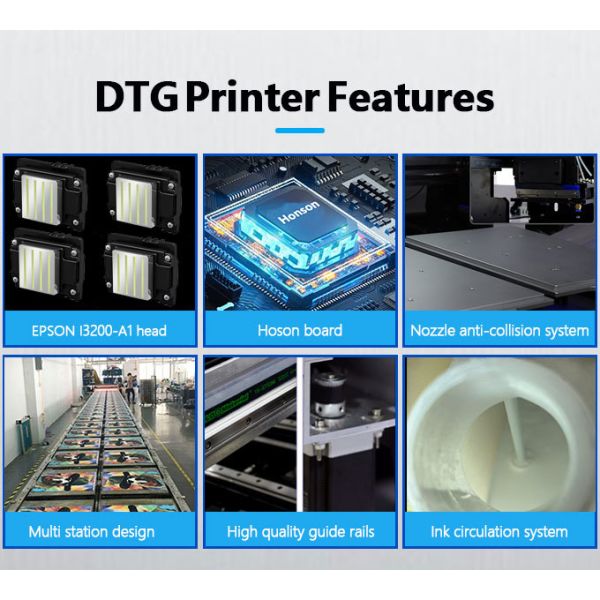

PRODUCT FEATURES
EPSON I3200 Print Heads
We use original EPSON I3200 print heads, with a 4-head configuration (2 white + 2 color). With our dedicated software, it can print 130-150 A4-sized pieces per hour.
02 Steel Gantry Frame
Compared with traditional aluminum frames, our steel gantry frame is harder and more stable. It stays completely still during printing, giving you higher precision and perfect registration. It’s also very easy to disassemble and assemble, even non-professional technicians can set it up by themselves.
03 Linear Rail
We use Taiwan HIWIN brand linear rails. They keep the printhead moving in a perfectly straight line, ensuring consistent high precision that won’t drop even after years of use.
04 Single Servo Motor Synchronous Transmission
Traditional shuttle table machines use two servo motors (one on each side), which sometimes causes out-of-sync movement and registration errors. Our machine uses single servo motor transmission technology, ensuring fully synchronous movement and more accurate left-right registration.
05 Supports Multiple Printing Processes
You can make film positives and screen frames on this machine. The frame has clamps for manual screen printing, so you can combine DTG printing with various processes for custom designs: gold/silver powder, puff ink, flock, heat transfer film, thick prints, and more. This helps you increase profit margins on your printed products.
06 8-Color Ink System
We use an 8-color system: standard CMYK + ORGB spot colors. This gives you a wider color gamut, better color saturation, smooth color gradients, and more realistic prints. With professional PRINTFACTORY software, you can use one-click background removal and one-click knockout to easily print gradients, feathering, light effects, and other custom designs.
07 Breathable Print with No Hand Feel, Wash Fastness ≥ Grade 4
The print is soft and breathable with no heavy hand feel. It has a wash fastness rating of Grade 4 or higher, so colors won’t fade after repeated washing.
08 Eco-Friendly Water-Based Pigment Ink
We use eco-friendly water-based pigment ink. The printing process is waterless, dust-free, smokeless, odorless, and produces no waste or noise. It’s fully compliant with environmental regulations, so you don’t have to worry about environmental audits.
09 Prints on Both Finished Garments & Cut Pieces
You can print on both finished garments and cut pieces. The maximum adjustable printing thickness is 10cm. It works perfectly on T-shirts, hoodies, sweaters, denim, towels, and more – even thick fabrics.
